VERTICAL SPLIT SYSTEM CONDENSING UNIT
PAIRED WITH A MULTI - POSITION FURNACE &
BOXED EVAPORATOR COIL.
SKYPAK™ -S IS DESIGNED TO REPLACE SKYMARK
INTERNATIONAL, YORK INTERNATIONAL & JOHNSON
CONTROLS INC., SKYPAK S-SERIES PACKAGED
HEATING & COOLING UNIT (OBSOLETE).
R-SKYPAK™ IS DESIGNED TO REPLACE FEDDERS
CLIMATROL AND SKYPAK R-SERIES PACKED
HEATING AND COOLING UNIT (OBSOLETE).
COOLING CAPACITIES:
12,000 BTUH, 18,000 BTUH,
24,000 BTUH, 30,000 BTUH
REFRIGERANT: 410A & 454B
VOLTAGE: 208-240V/1PH/60HZ
OPTIONAL TRANSFORMER
PROVIDES 120V FURNACE VOLTAGE.
24V THERMOSTAT CONTROL.
WARRANTY: 2 YEARS PARTS
5 YEARS COMPRESSOR AND CABINET.
**FURNACE WARRANTY AS PER MANUFACTURER.

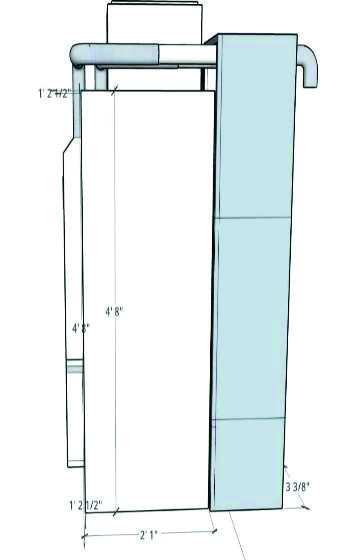

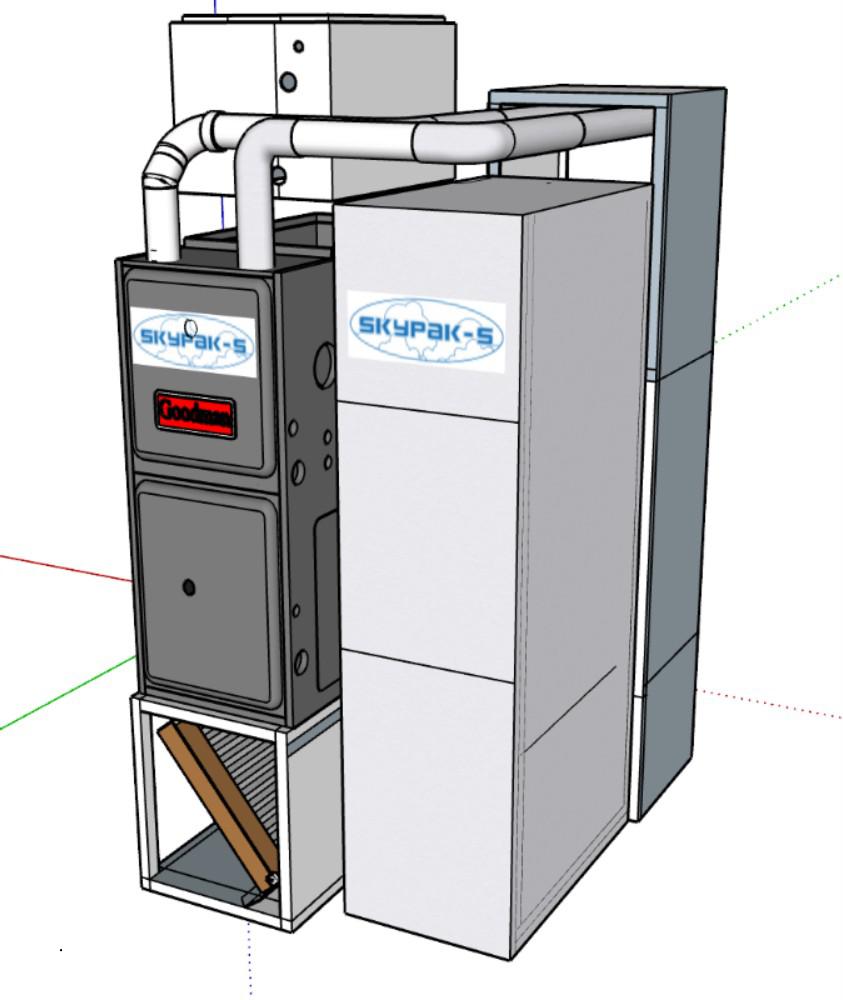

*TYPICAL INSTALLATION SKYPAKTM-S
**TM9Y 96% AFUE Two-Stage Furnace
TM9Y Product Brochure
Two-Stage, Multi-Speed, ECM Gas Furnace
Up to 96% AFUE Performance
**GM9C96
The heating capacities available in the “A” frame furnaces satisfy all existing SGAC, SGAD heating capacities. The SKYPAK™-S cooling capacities satisfy the cooling requirements and, when paired together, are a perfect replacement solution for your Skymark International, York International, and JCI, Johnson Control Skypak replacement.
LEFT-HAND RETURN OR RIGHT-HAND RETURN

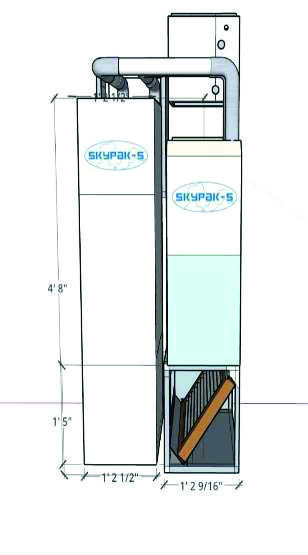

SKYPAKTM-S CONFIGURATIONS
MODEL NUMBER CONVERSION
S
* S = SKYPAK™-S
R = R-SKYPAK™
GAD
GAC = GAS
GAD = GAS
EAD = ELECTRIC
WAD = HYDRONIC
60
HEAT
INPUT
MBH
(*1000)
24
COOLING
CAPACITY
BTUH
(*1000)
L
L= LEFT HAND
R= RIGHT HAND
= SKYPAK
SKYPAK™
CONSIDERING
UNIT
-S
56H = S
52H = R
-24-
COOLING
CAPACITY
BTUH
(*1000)
E
D = 410A
E = 454B
FURNACE & COIL
**Consult with technical
support for correct sizing
