VERTICAL SPLIT SYSTEM CONDENSING UNIT
PAIRED WITH AN F-SERIES ADP AIR HANDLER
c/w ELECTRIC HEAT.
SKYPAK™ -S IS DESIGNED TO REPLACE SKYMARK
INTERNATIONAL, YORK INTERNATIONAL & JOHNSON
CONTROLS INC., SKYPAK S-SERIES PACKAGED
HEATING & COOLING UNIT (OBSOLETE).
R-SKYPAK™ IS DESIGNED TO REPLACE FEDDERS
CLIMATROL AND SKYPAK R-SERIES PACKED
HEATING AND COOLING UNIT (OBSOLETE).
COOLING CAPACITIES:
12,000 BTUH, 18,000 BTUH,
24,000 BTUH, 30,000 BTUH
REFRIGERANT: 410A & 454B
VOLTAGE: 208-240V/1PH/60HZ
OPTIONAL TRANSFORMER
PROVIDES 120V FURNACE VOLTAGE.
24V THERMOSTAT CONTROL.
WARRANTY: 2 YEARS PARTS
5 YEARS COMPRESSOR AND CABINET.
**FURNACE WARRANTY AS PER MANUFACTURER.

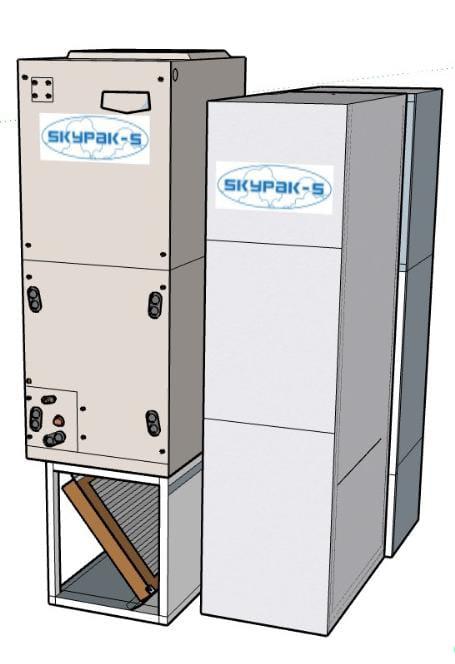

*TYPICAL INSTALLATION SKYPAKTM-S
Stock Units
**F-SERIES c/w Electric Heat
ADP low-profile air handlers offer a compact, efficient solution perfect for single—or multi-family use. They are thoroughly tested to ensure quality and deliver reliable ratings. The design has been generated to save customers a substantial amount of time on installation.
ADP air handlers are the ideal choice for replacing York, JCI, and Skymark Skypak applications.
(Obsolete) REAC, READ, SEAC, SEAD Models
LEFT-HAND RETURN OR RIGHT-HAND RETURN
SKYPAKTM-S CONFIGURATIONS
MODEL NUMBER CONVERSION
S
* S = SKYPAK™-S
R = R-SKYPAK™
EAD
EAD = E
IAD = HYDRONIC
10
HEAT
INPUT
KW
(@240v)
24
COOLING
CAPACITY
BTUH
(*1000)
L
L= LEFT HAND
R= RIGHT HAND
= SKYPAK
SKYPAK™
CONSIDERING
UNIT
-S
56H = S
52H = R
-24-
COOLING
CAPACITY
BTUH
(*1000)
E
D = 410A
E = 454B
**F-SERIES AIR HANDLER
**Consult with technical
support for correct sizing
